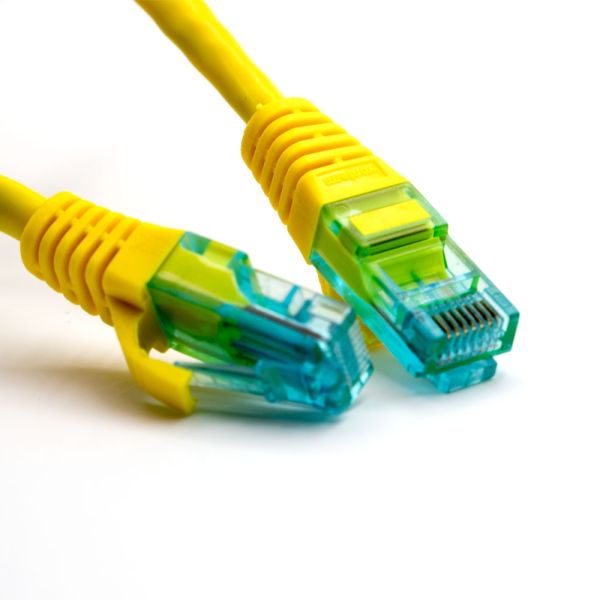

Switch Router Modem 2m Yellow Lan Cable / Network Patch Cable For Departments

Name: Switch Router Modem 2m Yellow Lan Cable Network Patch Cable For Departments
Brand: WONTERM
Price: 1 USD

Quality Switch Router Modem 2m Yellow Lan Cable / Network Patch Cable For Departments for sale

Brand Name : WONTERM

Model Number : WTP5001

Certification : CE/FCC/UL/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 30000pcs per month

Delivery Time : 10 working days after received your payment

Packaging Details : 250m/box

Nominal Outer Diameter : 5.0mm

Length : 1m,2m,3m,5m,10m......

Jacket : PVC(LSZH)

Packaging : 250pcs/box

Carton CBM(mm) : 42*37*37

Operating Temp : -40°C ~+80°C

PVC : LSZH,ROHS,65° PVC

Contact Now

Gold Plated Lead for Switch Router Modem Patch Panel 2m yellow lan cable in All Departments

Specifications:

CAT5E Patch Cords
Insulation Resistance			Min. 5000 mega-ohms-km at 20°C
Dielectric Test			1000V DC/min, Bo Breakdown
Temperature Rating			75 °C
Voltage Rating			30 V
Frequency (Mhz)	Zin-OS ( Ohm )	Fitted Z ( Ohm )	SRL.MIN ( dB )	ATT.MAX ( dB /100 m )	ELFEXT.MIN ( dB /100 M )	PSELFEXT.MIN SKEW ( dB /100 M )	NEXT.MIN ( dB )
Frequency (Mhz)	Zin-OS ( Ohm )	Fitted Z ( Ohm )	SRL.MIN ( dB )	ATT.MAX ( dB /100 m )	ELFEXT.MIN ( dB /100 M )	PSELFEXT.MIN SKEW ( dB /100 M )	NEXT.MIN ( dB )	PSNEXT.MIN ( dB )
1	100 ± 15	100 ± 15	20.00	1.84	68.00	65.00	74.30	72.30
4			23.01	3.69	56.00	53.00	65.27	63.27
8			24.52	5.26	49.90	46.90	60.75	58.75
10			25.00	5.89	48.00	45.00	59.30	57.30
16			25.00	7.51	43.90	40.90	56.24	54.24
20			25.00	8.43	42.00	39.00	54.78	52.78
25			24.32	9.47	40.00	37.00	53.33	51.33
31.25			23.64	10.64	38.10	35.10	51.88	49.88
52.5			21.54	15.36	32.10	29.10	47.36	45.36
100			20.11	19.78	28.00	25.00	44.30	42.30
200			18.00	28.97	22.00	19.00	39.78	37.78
250			17.32	32.84	20.00	17.00	38.33	36.33

Description:

1. Excellent Fluke test data, low Attenuation and high NEXT, RL etc, Pass Fluke Patch cord test
2. Suitable for 100MHz High speed Data transmission, Gigabit Ethernet, TP-PMD,
3. UL or cUL Listed, compliant with CMX, CM, CMR

4. 100% Component Test (patch cord test)100% Visual inspection:

Applications:

Switch Router Modem 2m Yellow Lan Cable / Network Patch Cable For Departments
